Collection Item |
 |
|
Casio FX-10 Scientific Calculator
 |
| Brand: |
Casio. |
| Model: |
FX-10 Scientific Calculator. "FX" is the mathematical designation of Function and 10 is for the number of scientific keys of this calculator. |
| Origin: |
Japan. |
| Introduction: |
May 1974. |
| Type: |

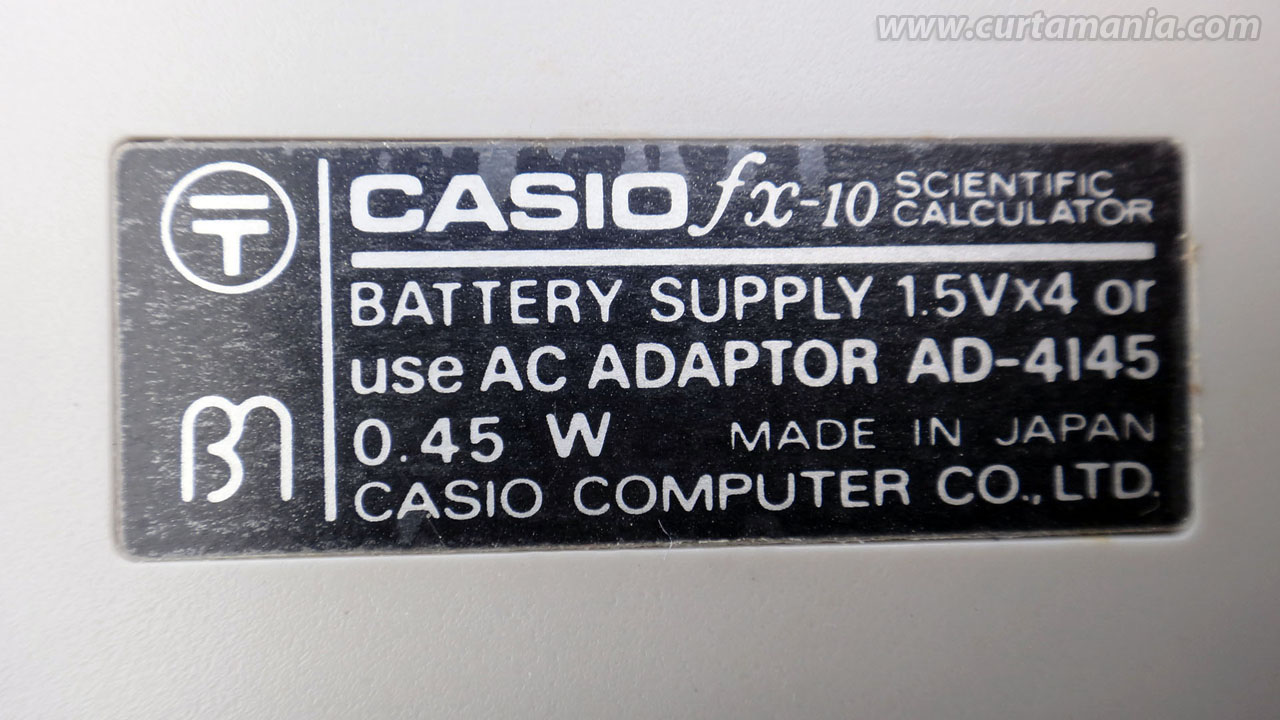

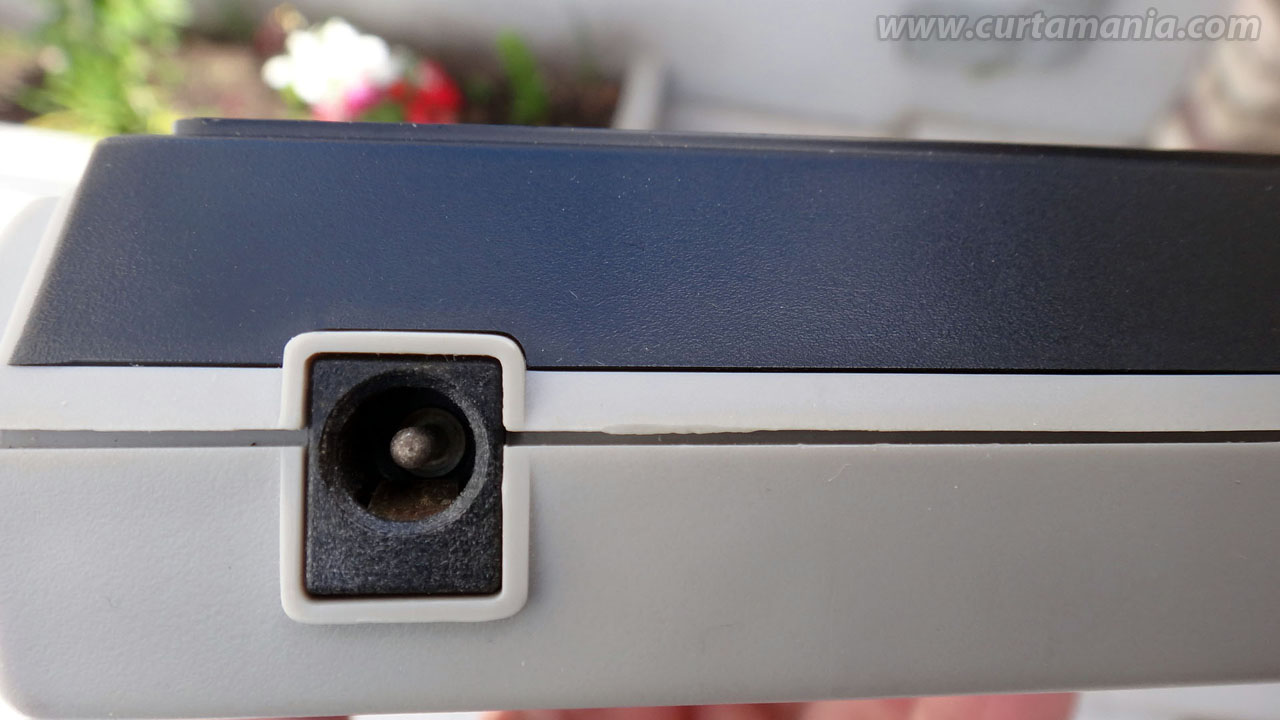

Hand-held 10-function scientific calculator operated with 4 AA batteries and external adapter. |
| Functions: |
4 basic functions with constant plus 10 scientific functions: Decimal and Natural Logarithm, e^x, a^n, 1/x, Sin, Cos, Tan, Square Root and Sexagesimal to Decimal conversion.
Also there is a Pi constant key. Please note there is no 10^x key, no inverse trigonometric functions and the a^n key works only with integer values on n between 0 and 9. |
| Display: |

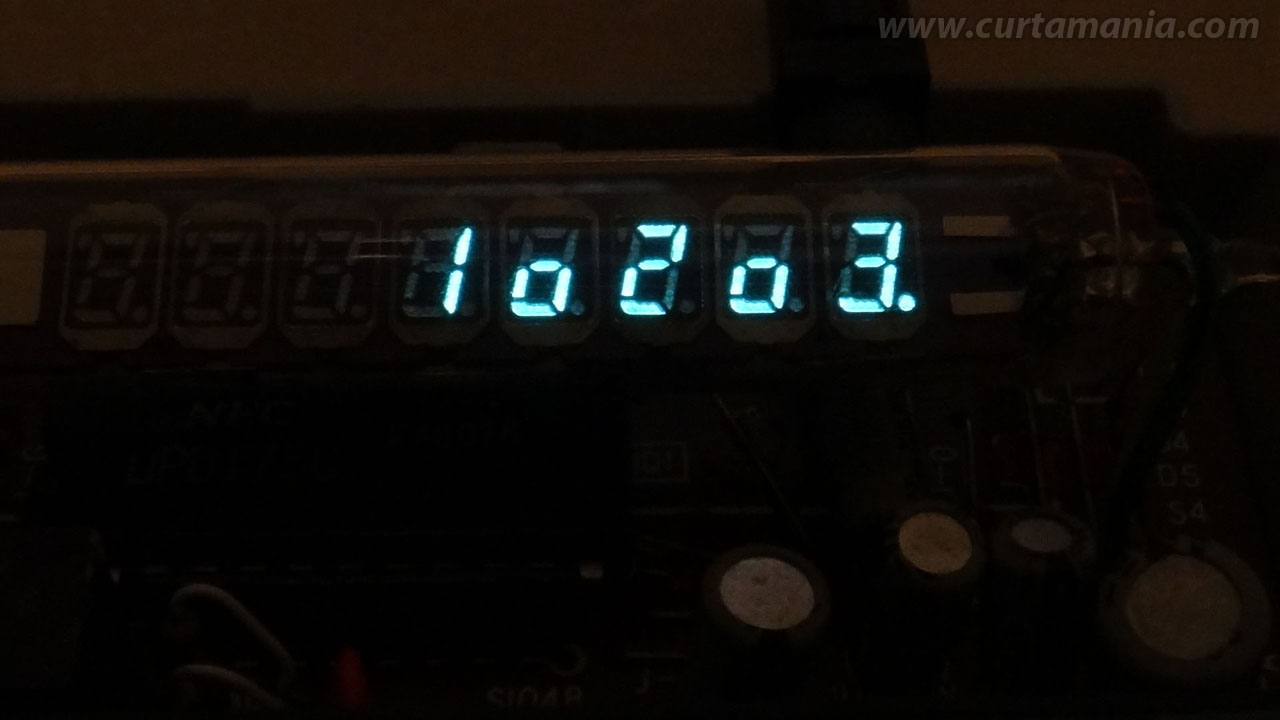

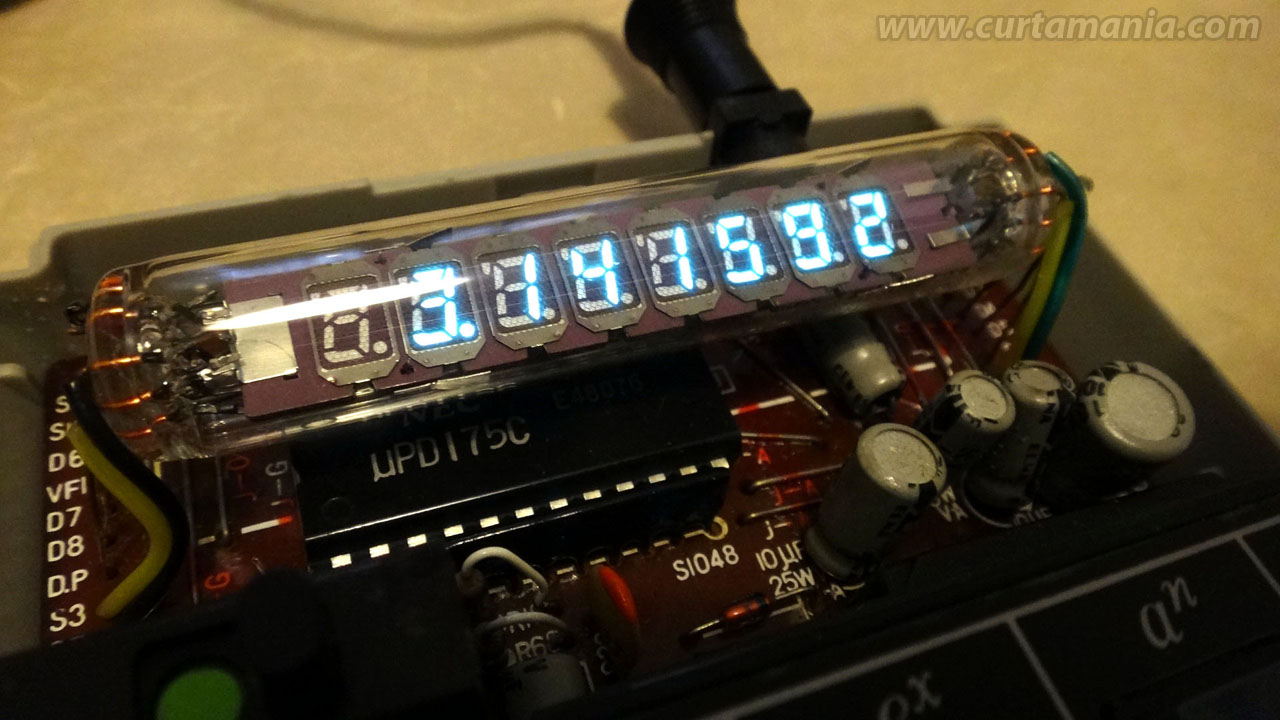

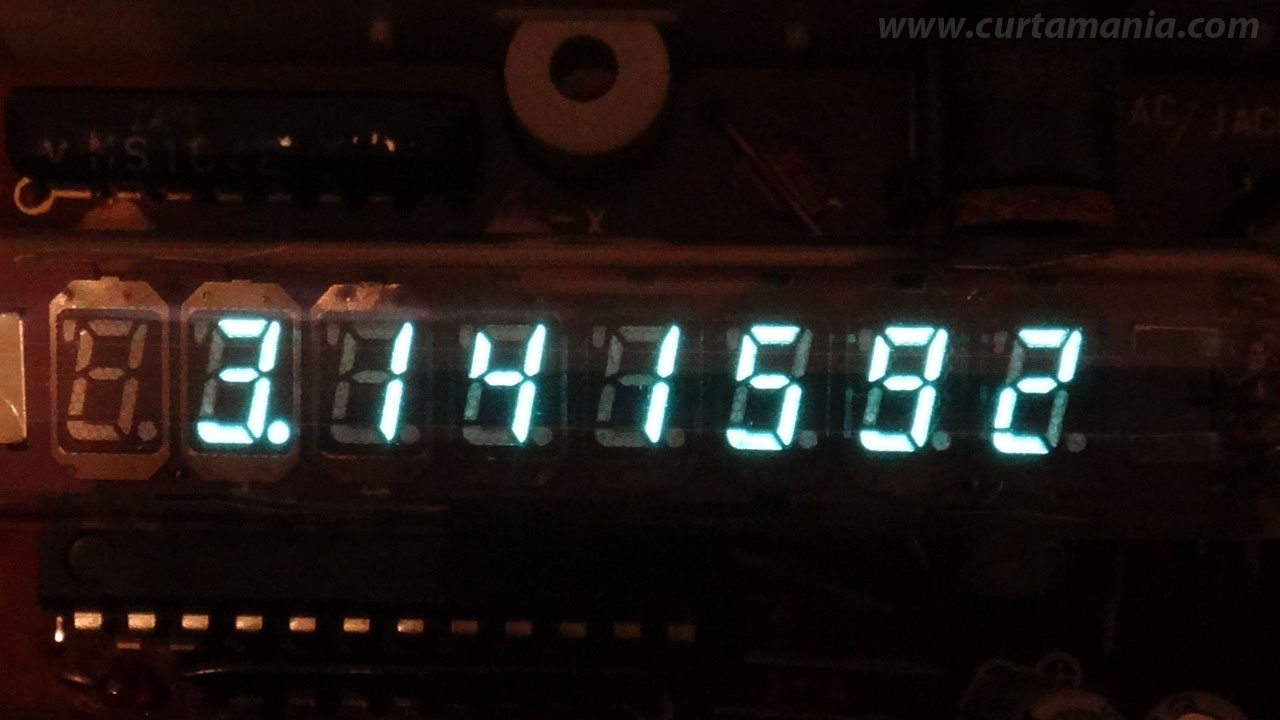

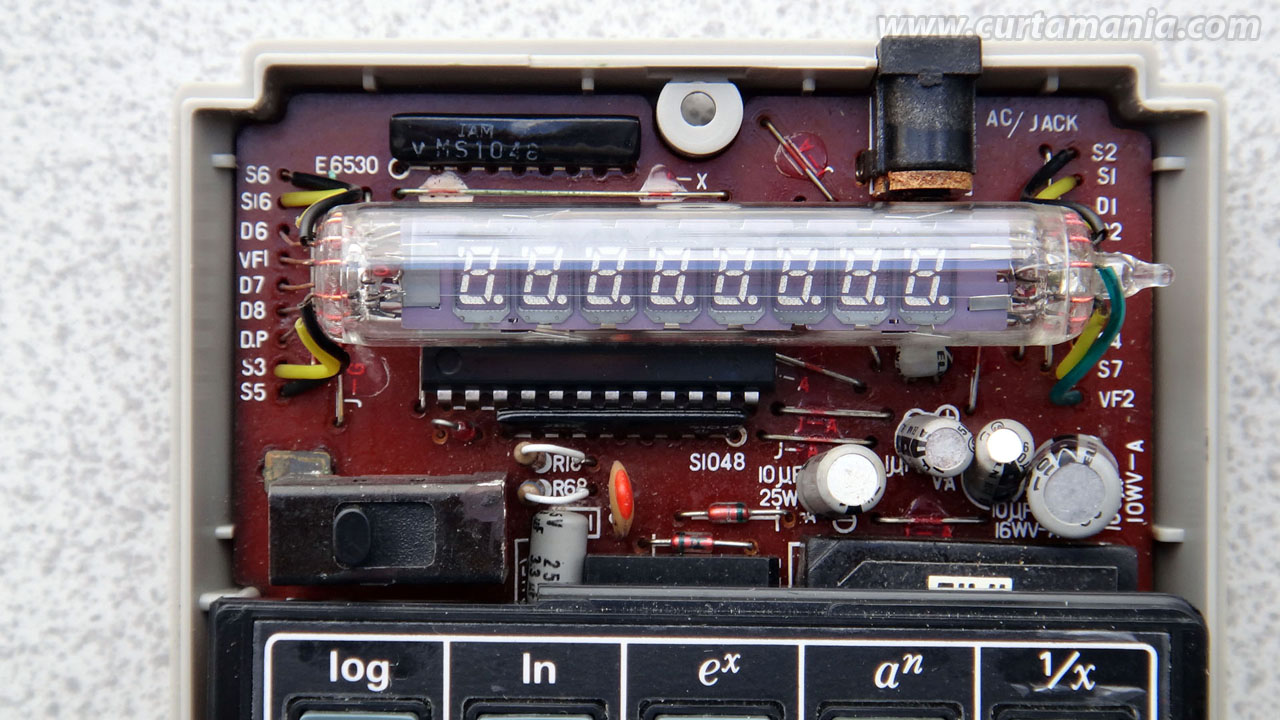

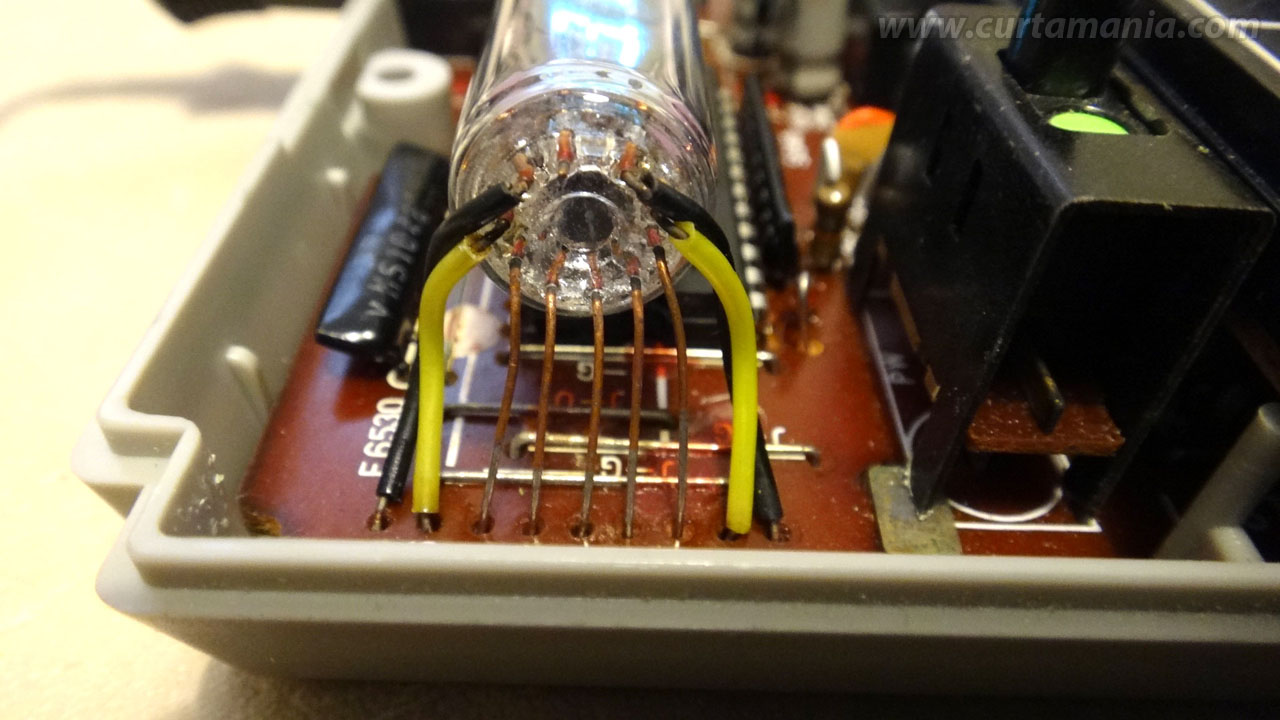

8 digit VFD Digitron display in one crystal tube. Each digit contains 9 segments but this calc uses only 8 segments (7 for numerals plus decimal point). This calc uses the famous "half-height" zero used for Casio in early VFD calculators. The reason for this is unknown, but one possibility is to reduce reading confusion in case of a segment(s) failure. For example, number 1.018046 is displayed as:
|
| Keyboard: |

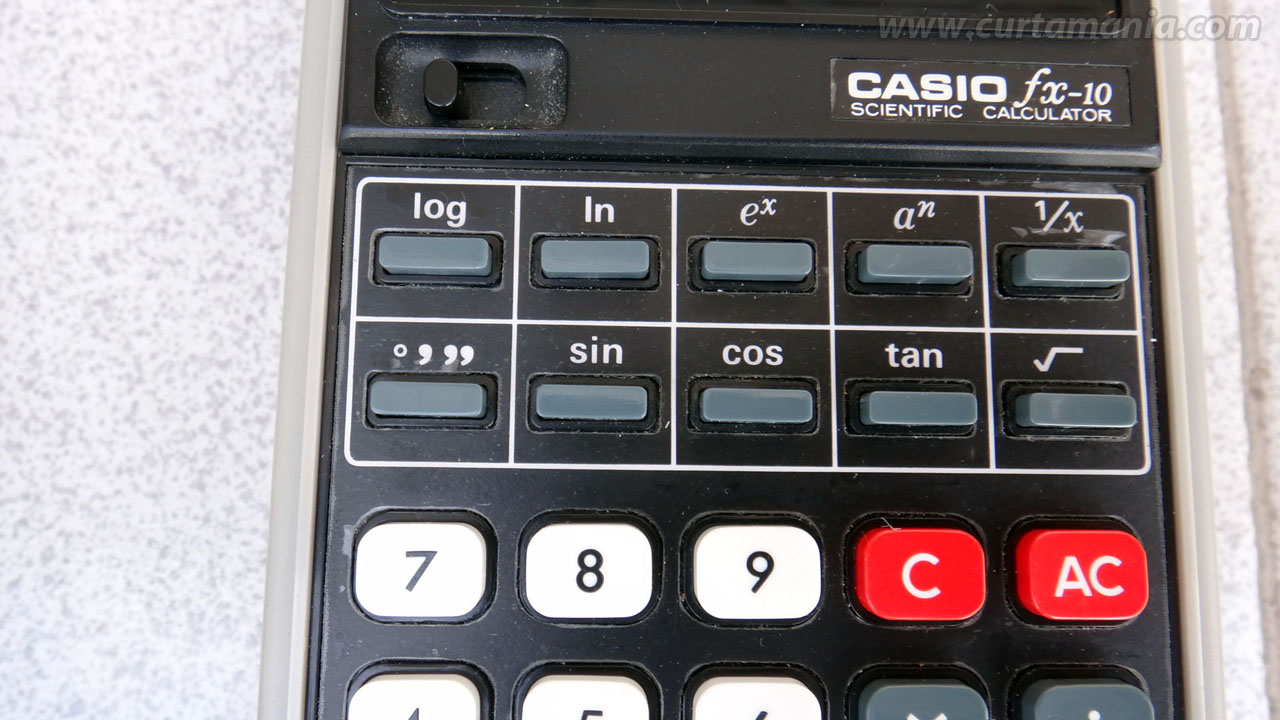

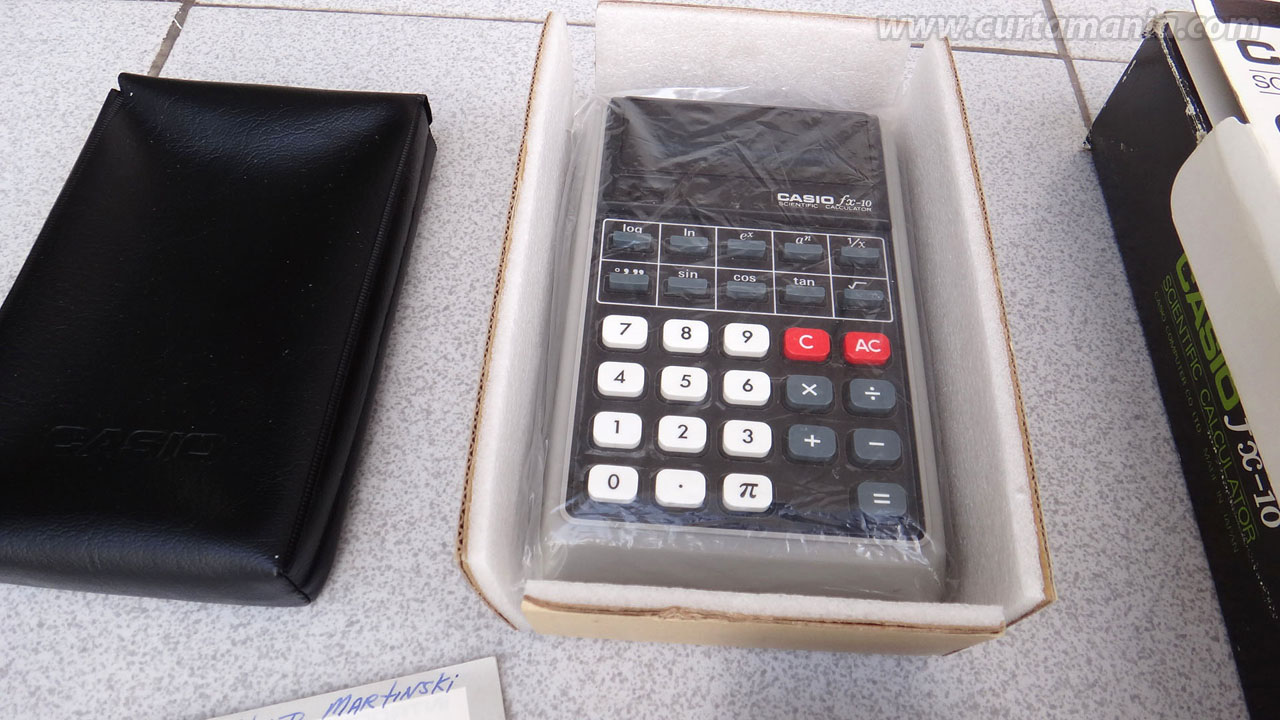

29 keys in two blocks: 19 colorful big keys for basic functions including Pi Constant and 10 smaller blue keys for scientific functions. On/Off switch. |
| Main chips: |

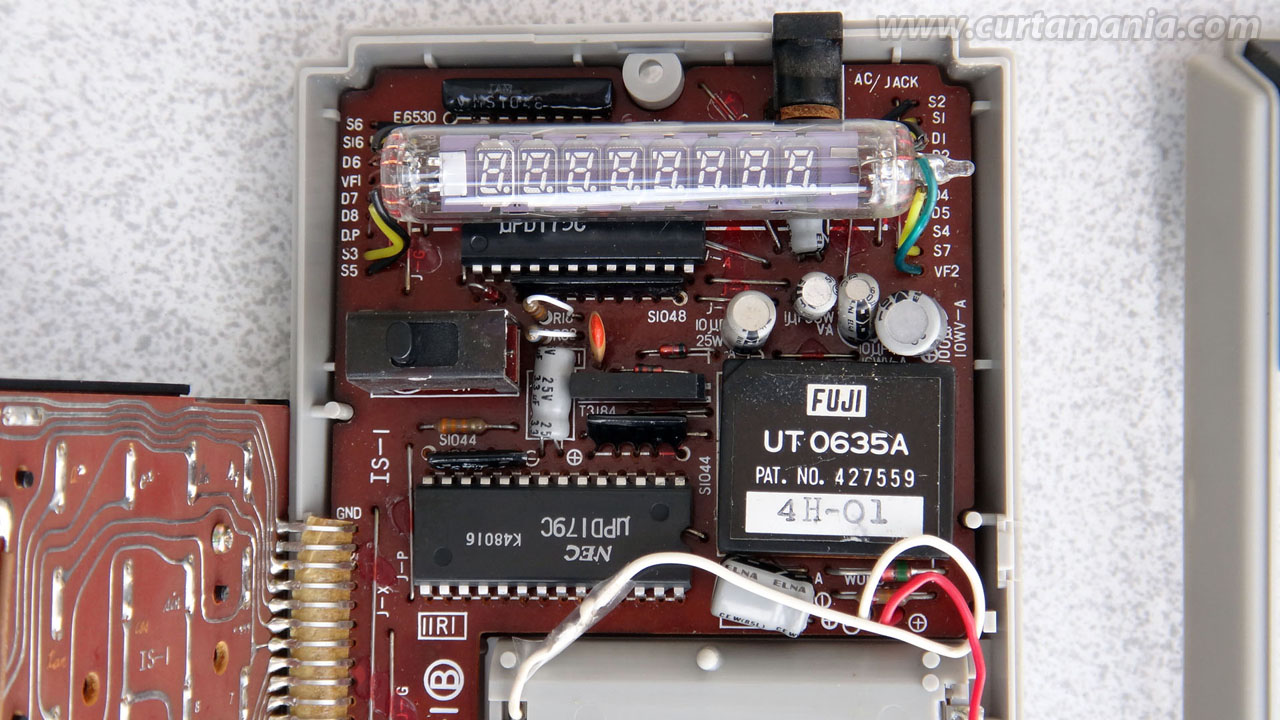

Two NEC chips identified as uPD175C (E48076) and uPD179C (E48016) with no identificable datecode. |
| Remarks: |
This is the first hand-held scientific calculator made by Casio, a reduced version (in size and functions) of the previous FX-1 desktop calculator. Casio made a clone of the FX-10 for Sperry Remington: The SSR-8, the exact same machine but in different colors. |
| Size: |
5.91 x 3.74 x 1.26 in, 150 x 95 x 32 mm. |
| Accesories: |

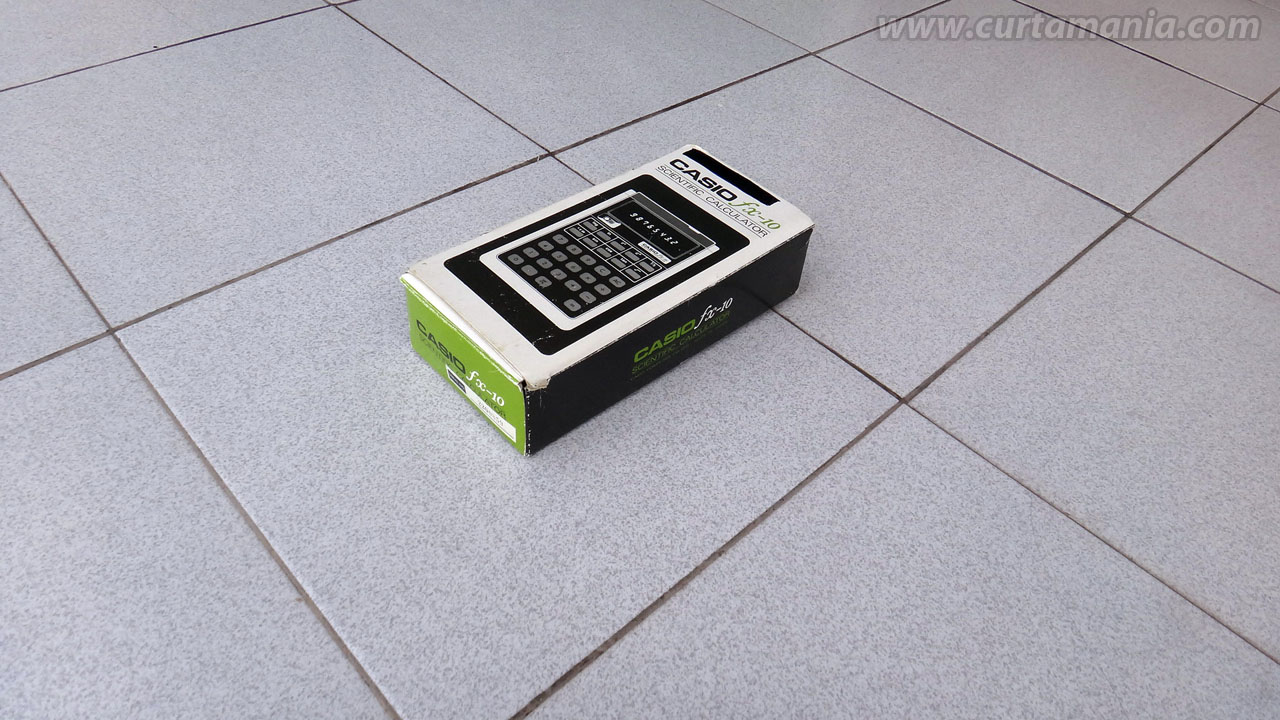

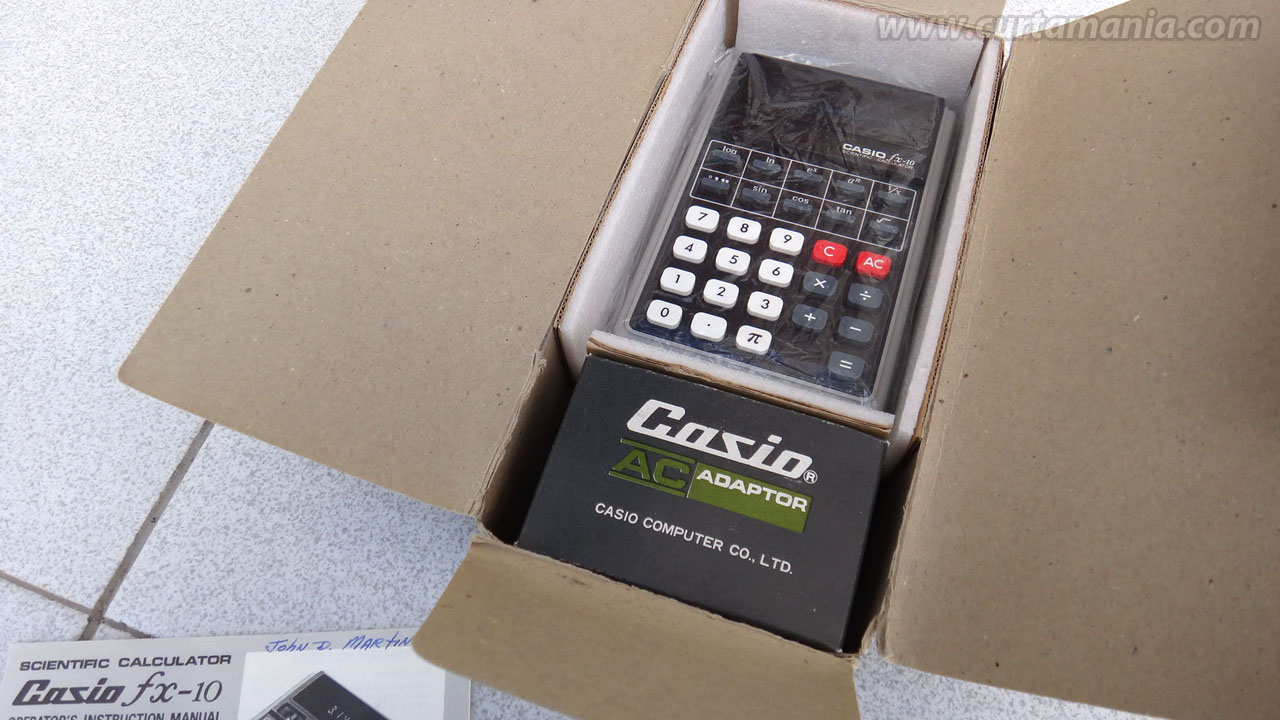

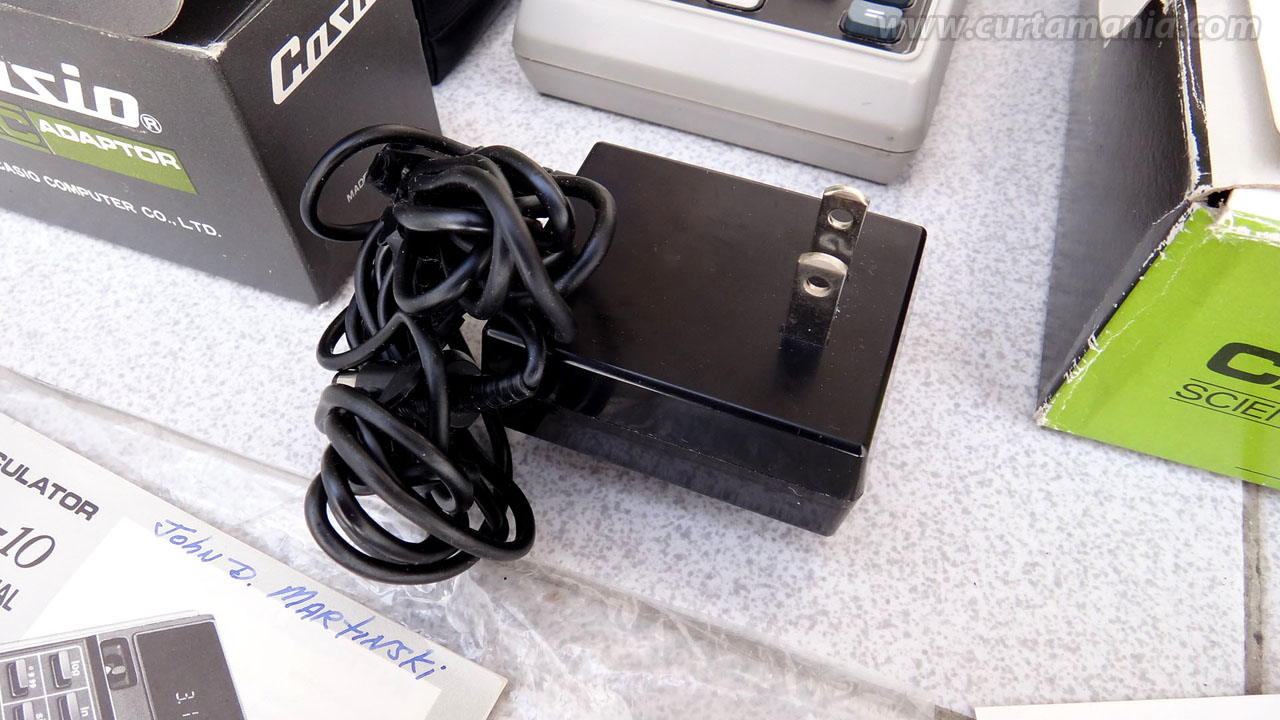

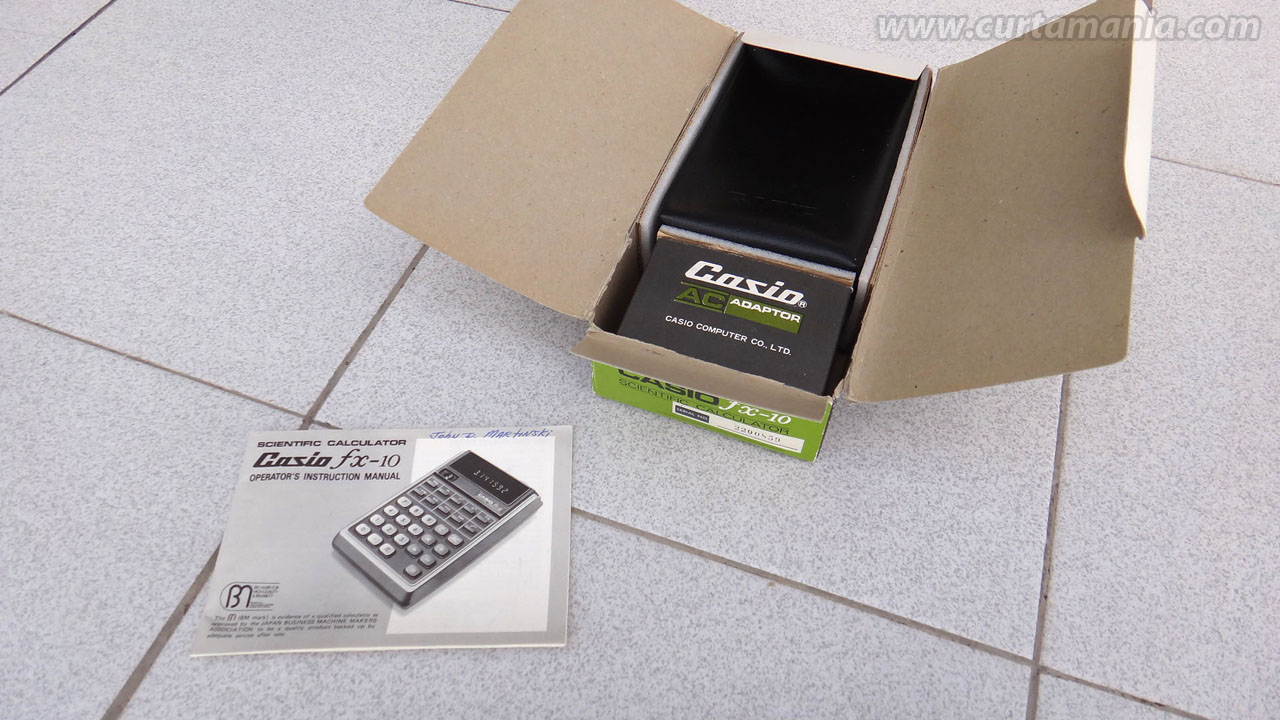

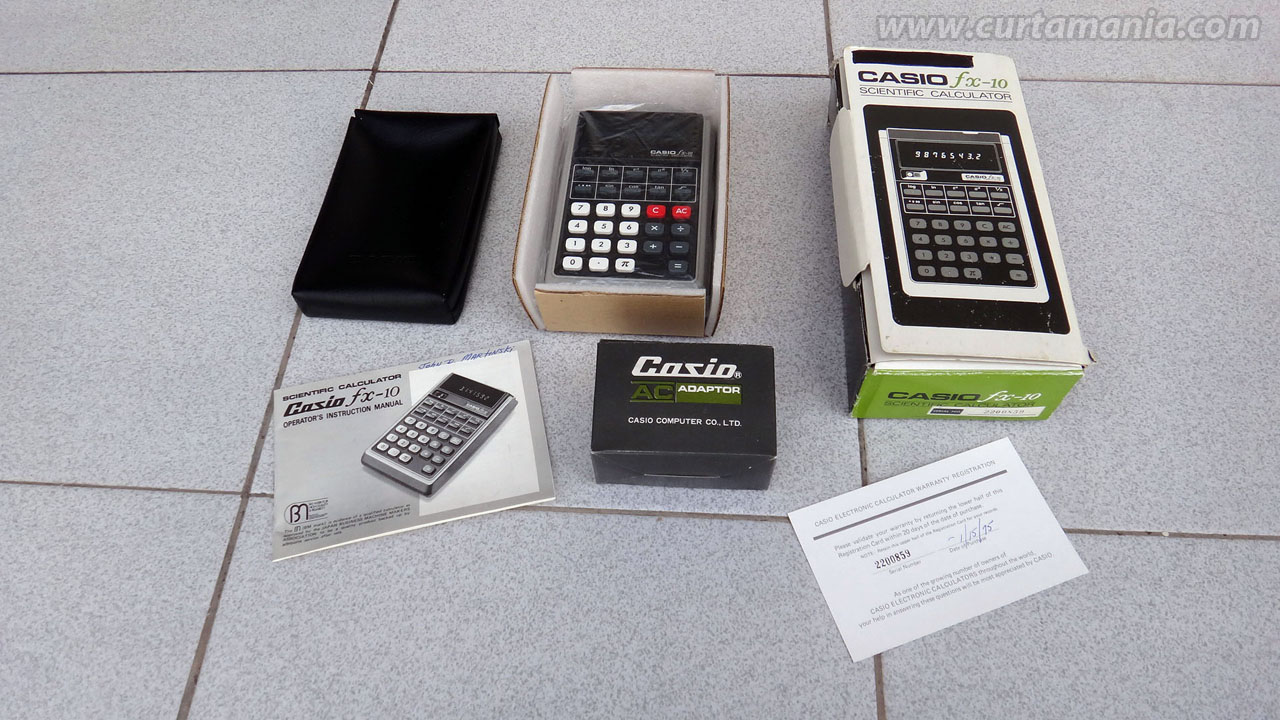

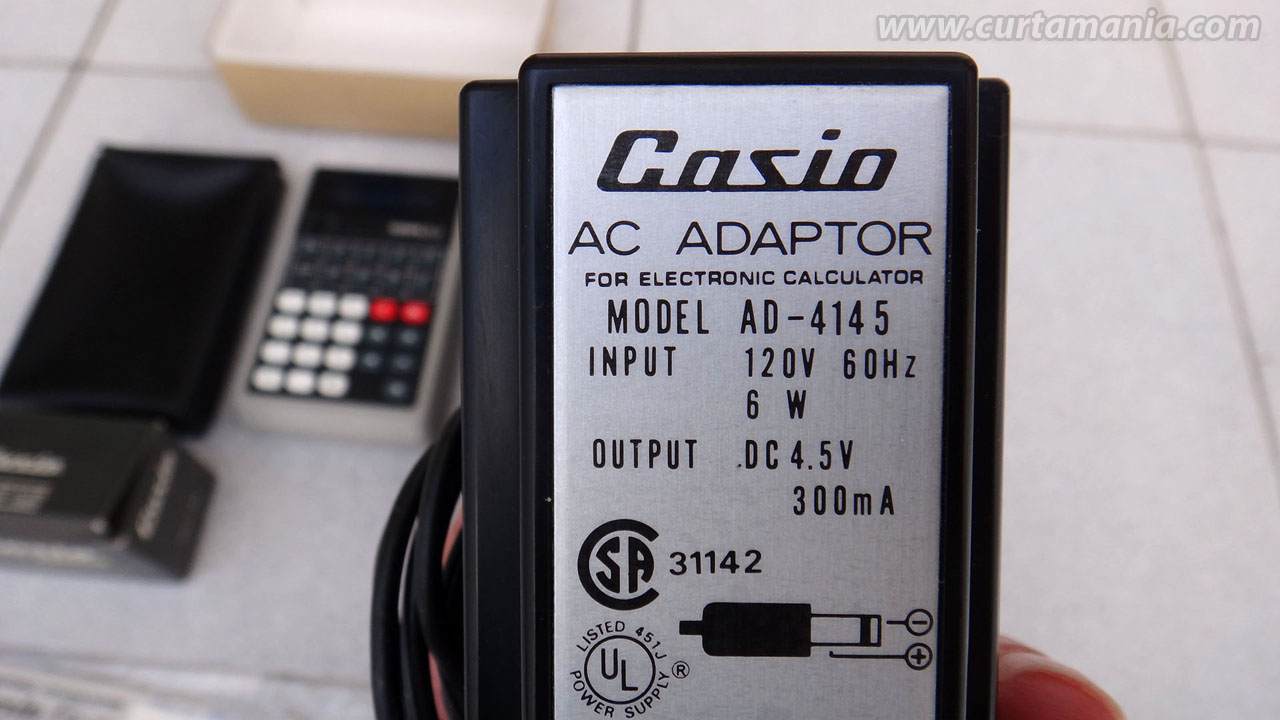

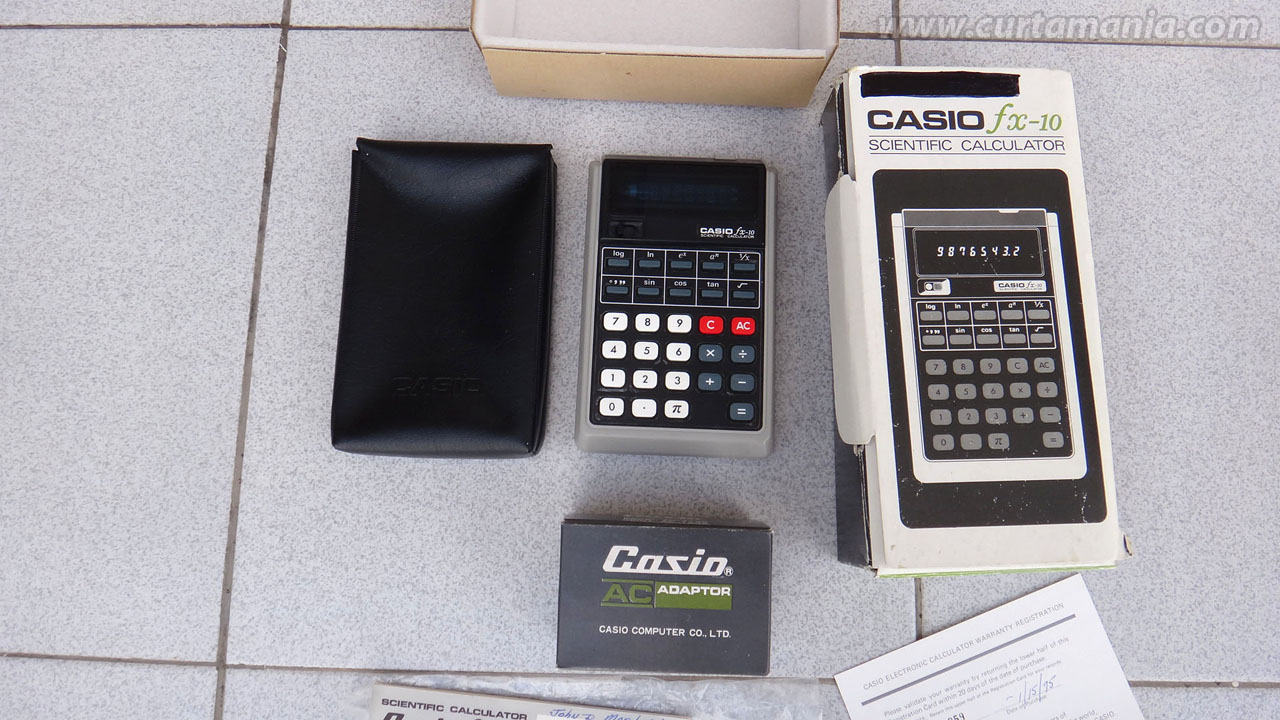

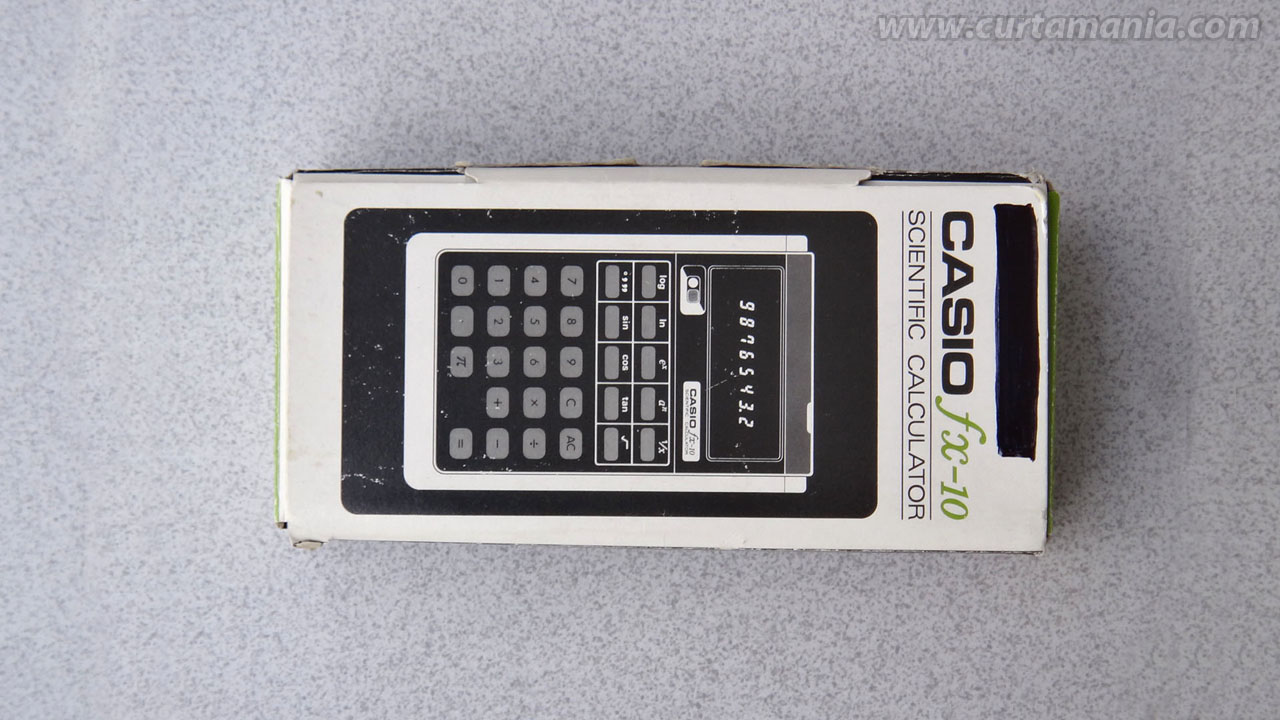

This example has all accesories provided with a new-brand calculator: Original cardboard box, internal protective styrofoam, protective plastic film, leather-type soft case, User Manual in English, original Warranty and external 110v adapter with own cardboard box. |
| Condition: |
(8.5/10) Very Good, Mint, minimal marks on the keyboard template, full working. |
| Download: |
Original Casio FX-10 Operator's Instruction Manual in English, click here. |
| Some advertisements of the Casio FX-10 I found on the web, click on the thumbnail. |

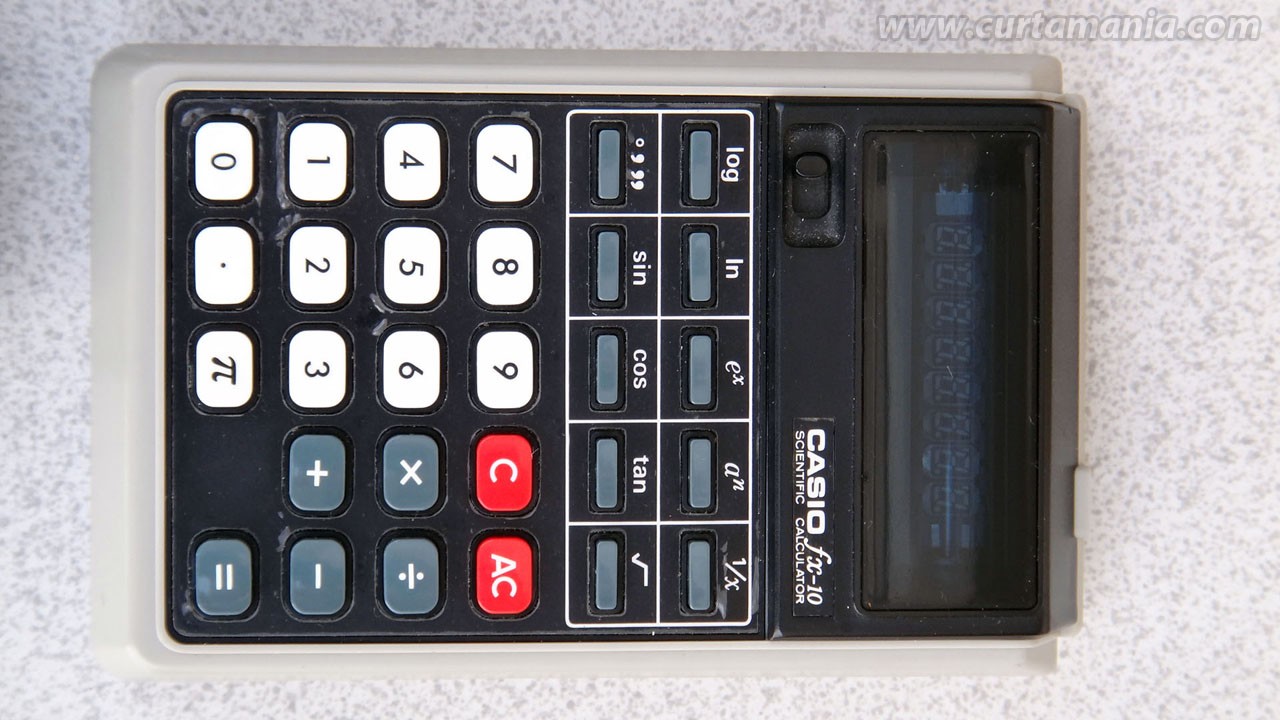

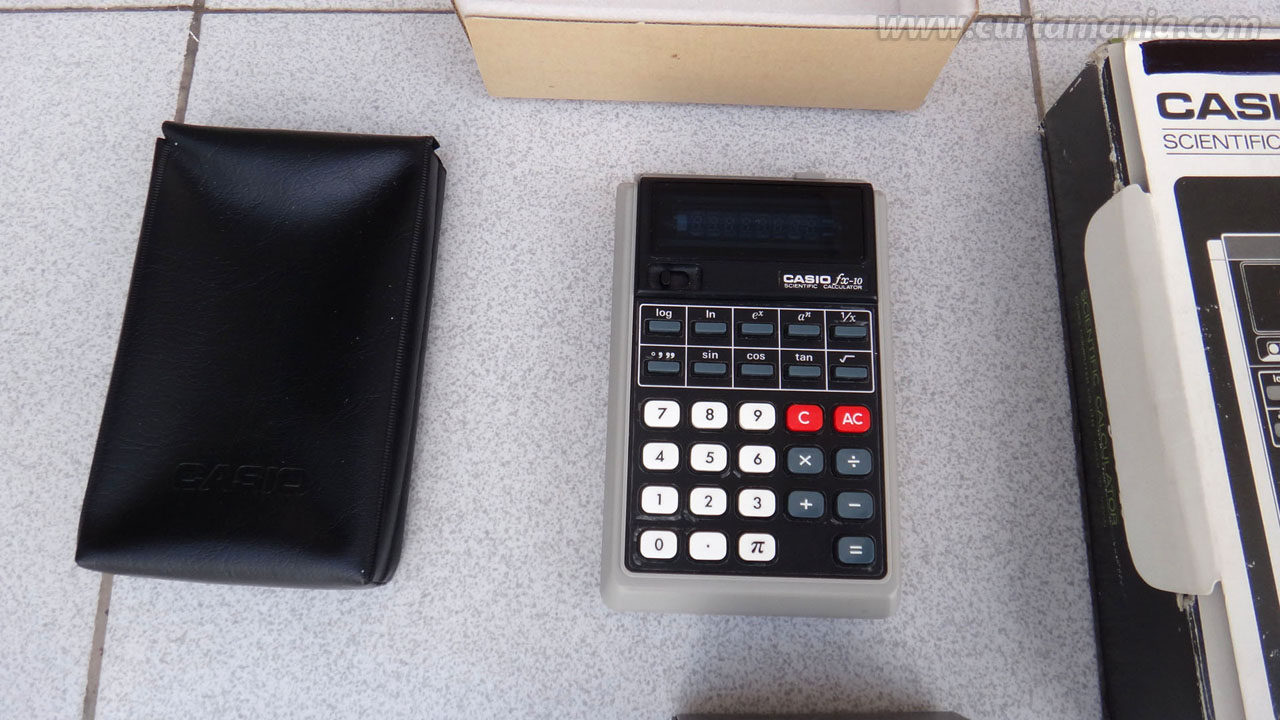

| Pictures of my Casio FX-10. |
